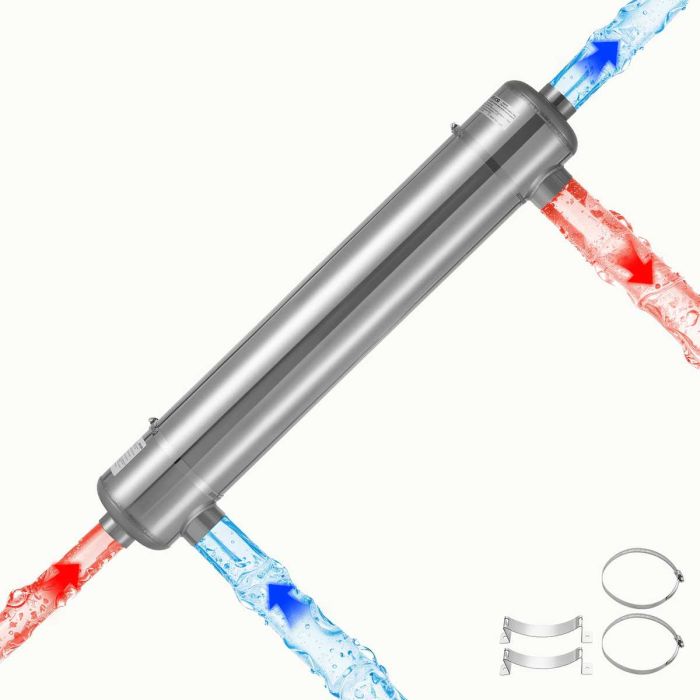

Swimming pool heat exchanger VEVOR MF-360K, 360K BTU/h, 133 × 153 × 832 mm

VEVOR pool heat exchanger is designed for heating water in swimming pools, spas and hot tubs. It can be used indoors and outdoors, and the specified heat output is 360K BTU/h.

The heat exchanger body is made of 316L stainless steel. The unit has 30 tubes, a heat exchange area of ​​0.69 m² and S304 inlet and outlet ports. Operating temperature – from –28 to 110 °C.

Main product features

• Water to water heat transfer
• 316L stainless steel construction
• 30 tubes
• Heat output – 360K BTU/h
• Mounting brackets and clamps

Technical information

• Dimensions: 133 × 153 × 832 mm
• Operating temperature: –28–110 °C
• Heat exchange area: 0.69 m²
• Model: MF-360K
• Weight: 8.0 kg

Complete set

Heat exchanger, mounting brackets and clamps.
