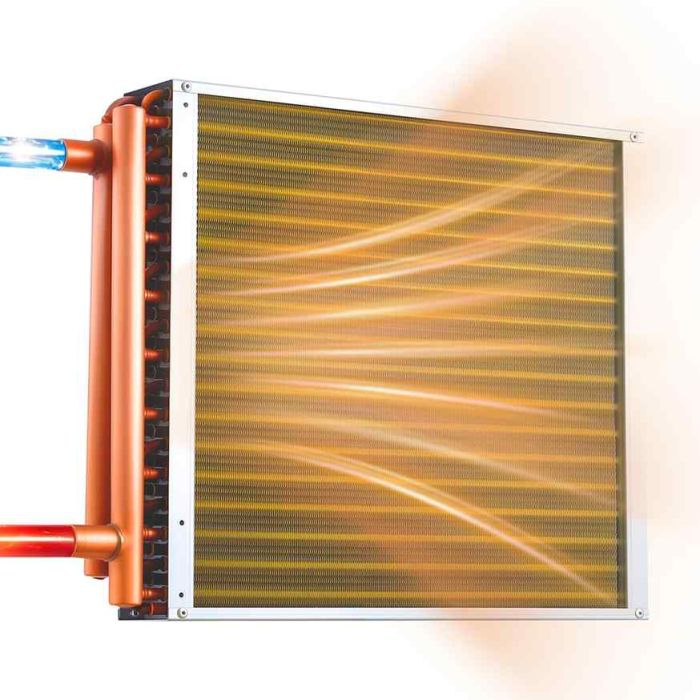

Water-to-air heat exchanger VEVOR C18×18, 590 × 460 × 89 mm

VEVOR water-to-air heat exchanger is designed for heat transfer in outdoor wood-burning stoves and hydraulic heating and cooling systems. It has copper tubes, aluminum fins and a galvanized steel plate.

A coil with copper inlet and outlet holes is used for water-to-air heat exchange. Seamless copper tubes form 3 rows, and aluminum fins increase the heat transfer surface.

Main product features

• 217 aluminum fins
• Heat output: ≥120,000 BTU/h
• Maximum working pressure: 2.5 MPa
• Copper tubes and aluminum fins
• Model C18×18

Technical information

• Plate area: 457 × 457 mm
• Port size: 28.6 × 35 mm
• Product dimensions: 590 × 460 × 89 mm
• Net weight: 7.9 kg

Package

VEVOR heat exchanger coil with copper tubes and aluminum edges.
