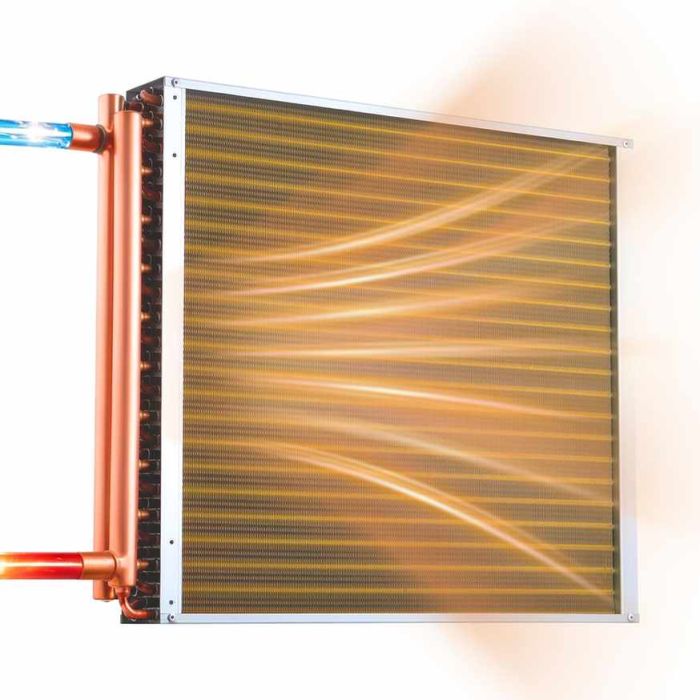

Water-to-air heat exchanger VEVOR C22×22, 695 × 560 × 89 mm

VEVOR water-to-air heat exchanger is designed for hydronic heating and cooling systems and outdoor wood-burning stoves. It uses copper tubes, aluminum fins and galvanized steel plate.

The coil has copper inlet and outlet ports, 3 rows of seamless copper tubes and 266 aluminum fins. Heat output reaches ≥190,000 BTU/h.

Main product features

• Plate area: 559 × 559 mm
• Heat output: ≥190,000 BTU/h
• 266 aluminum fins
• Maximum working pressure: 2.5 MPa
• Model C22×22

Technical information

• Port size: 28.6 × 35 mm
• Product dimensions: 695 × 560 × 89 mm
• Net weight: 10.6 kg

Package

VEVOR heat exchanger with copper pipes and aluminum fins.
