Steering gear release tool set Bituxx, 3 prongs

The steering gear release tool set is designed to separate steering knuckles, ball joints, steering column levers and steering pushrods. The set can be used with compressed air or manually in the workshop.

The tools are made of cast tool steel. The set includes three forks of different sizes, a hand hammer handle and an adapter for a pneumatic hammer or chisel. The components are packed in a plastic case.

Main product features

• Designed to separate steering gear elements.
• Three forks: 17 mm, 23 mm and 28 mm.
• Hand hammer handle: 200 mm long, Ø 19 mm.
• Adapter: 175 mm long, Ø 12 mm; base Ø 10 mm.
• Can be used manually or with a compressed air hammer.
• Material – cast iron tool steel.

Technical information

• Set weight – 1.85 kg.
• The set is designed to release steering knuckles, ball joints, steering column levers and steering pushrods.

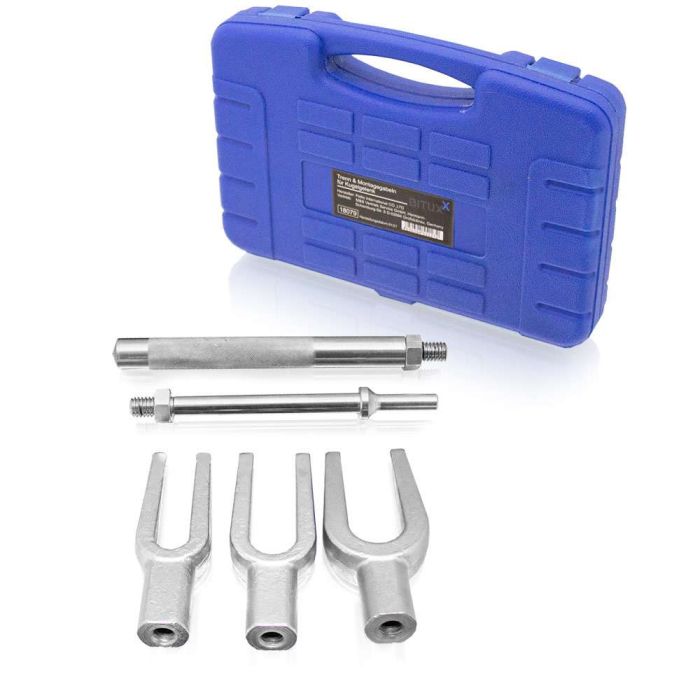

Component

• Fork 17 mm.
• Fork 23 mm.
• Fork 28 mm.
• Hand hammer handle.
• Adapter for pneumatic hammer or chisel.
• Plastic case.
