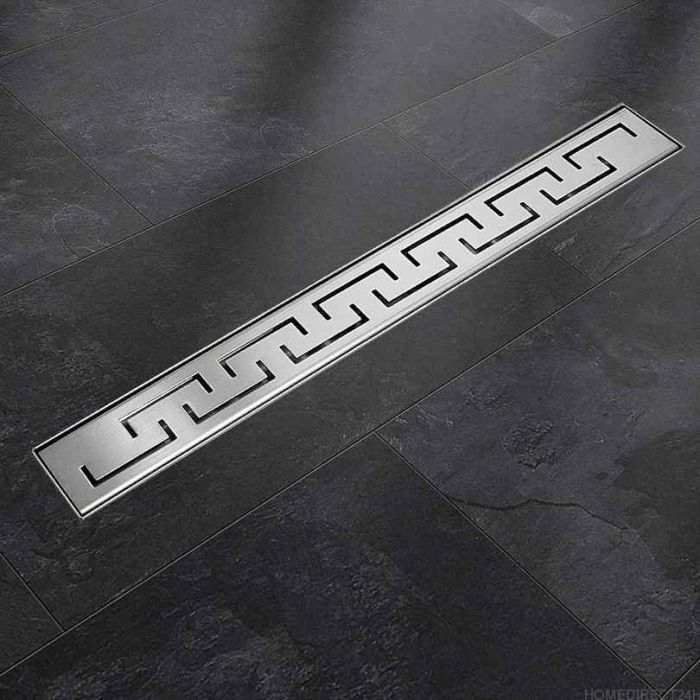

Linear shower channel BOGEN, with siphon

Linear shower channel with siphon BOGEN, 150 cm long, designed for bathroom water drainage. The product is made of stainless steel, and the kit includes parts for installation and cleaning.

The channel is equipped with adjustable feet that can be dismantled. A removable siphon is designed to retain dirt, and a removable protective grille makes cleaning easier. The sealing mat, or flange, is made of waterproof material. Handle for removing the lid.

Main product features

• Linear drain, model BOGEN
• Drain length – 150 cm
• Stainless steel construction
• Removable siphon and protective grille
• Adjustable, removable legs
• Waterproof sealing mat
• Lid removal handle

Technical information

• Installation depth without legs – approx. 75 mm
• Maximum installation depth with legs – approx. 145 mm
• Available lengths: 50, 60, 70, 80, 90, 100, 110, 120, 130, 140 and 150 cm
• Weight – 1500 g

Complete set

• Drain body with siphon
• Cover
• Removable siphon
• Protective grille
• Adjustable feet
• Sealing mat
• Handle for removing the cover
• Installation instructions
