Inverter welding machine Bituxx, 10–200 A, 260 × 140 × 110 mm

The Bituxx inverter welding machine is designed for welding various metals. It is stated that it can weld steel, stainless steel, aluminum and castings. The machine has IGBT inverter technology, adjustable welding current and a digital display for monitoring parameters.

The maximum output current of the device reaches 200 A, and the operating current range is 10–200 A. The design provides protection against overheating and a carrying handle. The kit includes welding cables, wire brush with hammer and welding mask.

Main product features

• IGBT inverter technology.
• Adjustable welding current 10–200 A.
• Digital display for monitoring parameters.
• Maximum output current: 200 A.
• Suitable for steel, stainless steel, aluminum and castings.
• Overheating protection and carrying handle.

Technical information

• Input voltage: AC 230 V.
• Input power: 9.4 kVA.
• Input current: 42.8 A.
• Rated power: 200 A / 28 V.
• Open circuit voltage: 70 V.
• Nominal duty cycle: 35% at 40°C.
• Efficiency: 85%
• Power factor: 0.9.
• Protection class: IP21S.
• Insulation class: F.
• Dimensions: approx. 260 × 140 × 110 mm.
• Weight: 2.8 kg.

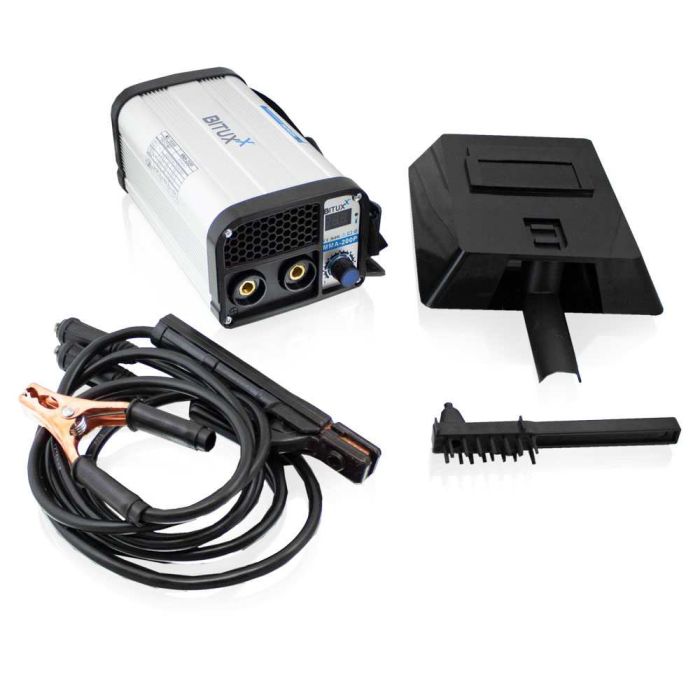

Package

• Inverter welding machine.
• 2 m welding cable with electrode holder.
• Wire brush with hammer.
• 2 m grounding cable with clamp.
• Welding mask with holder.
