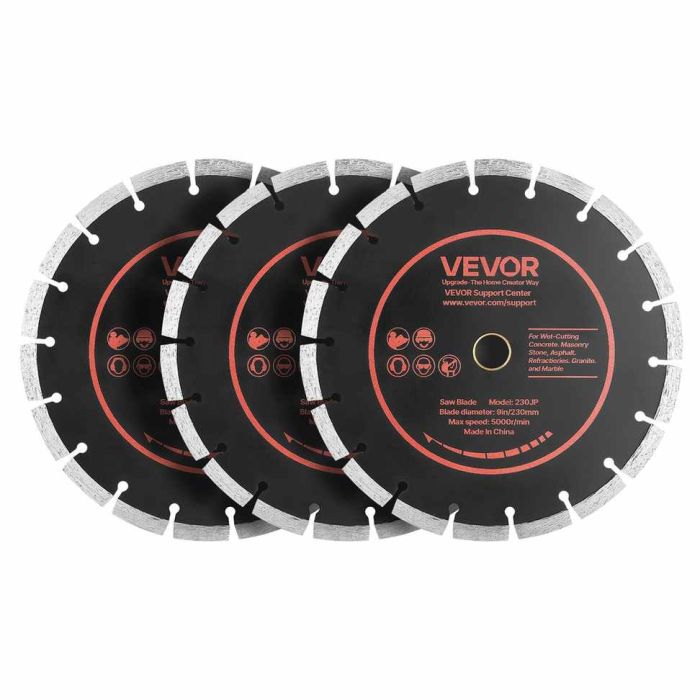

Diamond discs VEVOR 230JP, 3 pcs.

VEVOR diamond blade set is designed for cutting concrete, masonry, bricks, stone and granite with electric cutting tools. The blades are suitable for dry and wet cutting.

The set includes three 230 mm diameter blades with a 22.2 mm shaft bore. High-hardness diamond segments are attached to a 65Mn steel core. The discs are designed for use with various electric saws, angle grinders and other suitable tools.

Main product features

• 3 diamond discs in the set
• For concrete, masonry, bricks, stone and granite
• Dry and wet cutting capabilities
• 65Mn steel core and diamond segments
• Segment height: 10 mm ±0.5 mm
• Maximum disc speed: 5500 rpm.

Technical information

• Disc diameter: 230 mm
• Shaft diameter: 22.2 mm ±0.1 mm
• Core thickness: 1.6 mm ±0.1 mm
• Maximum segment thickness: 2.5–2.6 mm
• Model: 230JP
• Weight of one disc: 0.5 kg

Package

3 VEVOR diamond discs.
